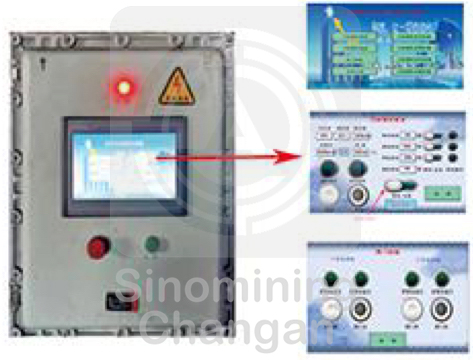

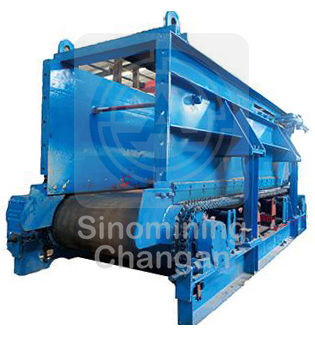

The chain belt weighing feeder is a new type of weighing feeder newly developed by our company on the basis of the GLLD (A) type chain belt feeder. It is composed of chain-belt feeder, measuring scale body, weighing sensor, speed measuring sensor, control instrument, structural parts and control part (including frequency converter, machine-side operation box, control cabinet, etc.), etc. Its weighing principle is different from Ordinary belt weigh feeder.
Features
- The patented technology of using sprockets to drive the chain to drive the conveyor belt to transmit materials, the chain transmits power, the conveyor belt only plays the role of carrying the material, and the chain drives the conveyor belt and the material to move, which can realize the process of conveying materials without spilling materials and the transmission process. Slippage; high reliability of transmission operation and low resistance;
- Because the chain drives the conveyor belt and the material movement conveyor belt only plays the role of carrying the material, all the conveyor belts have very little influence on the weighing roller when conveying the material, so the weighing accuracy is high, and the weighing accuracy is not higher than 0.2%.
- When the feeding amount is large, the influence on the weighing accuracy is small, the operation is stable, the adjustment is convenient (frequency conversion stepless speed regulation), and the noise is small;
- The system can display instantaneous flow, cumulative volume, belt speed, cumulative shift output and daily output;
- With remote automatic control function;
- With the advantages of belt feeder and chain belt feeder, there is no belt feeder, ordinary steel belt feeder belt running, slipping, wear, belt need to be frequently tensioned, replaced and other problems , Small maintenance work, easy maintenance; 7. The whole machine has reasonable structure, small size, light weight, easy installation and adjustment, small transmission wear and long service life;
